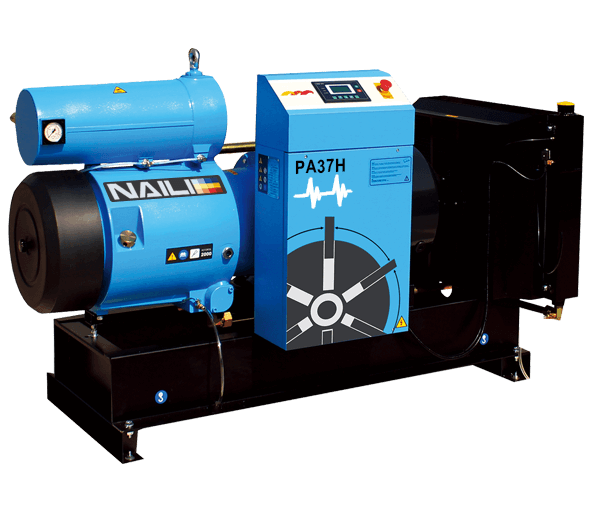

NAILI PA series Energy saving type rotary vane compressor

Inquire Now Next Product

PRODUCTS DESCRIPTION

PA series designed based on NAILI A series rotary vane compressors and which is more applicable for the outdoor in tropical countries!

Compressed air solution:

PA/PB series rotary vane compressors which is driven by High performance permanent magnet electric synchronous motor and all motors approved by IE4!

The purpose of combination designed to make the higher air capacity with highest efficiency!

INVT provided reliable and stable Inverter, the speed is variable and easier for the customer to adjust the air capacity to the user's needs!

All compressors widely used in Metal smelting, Textile, Pharmaceutical, Petroleum, Chemical, Cement, Food Package, Printing and packaging, and other industries.

Permanent magnet electric motor qualified by ISO, EC, even passed UL and DOE;

INVT is committed to providing more reliable Inverter for all compressed air industries!

PA7~PA22

Model		Unit	PA7	PA11	PA15	PA18.5	PA22
Ambient temperature		℃	0-45	0-45	0-45	0-45	0-45
Relative humidity		%	0-90	0-90	0-90	0-90	0-90
Air capacity	8bar	m³/min	1.41	1.99	2.75	3.34	3.81
	10bar	m³/min	1.17	1.73	2.24	2.69	3.26
	13bar	m³/min	0.96	1.35	1.88	2.28	2.60
Oil carryover		PPM	≤3	≤3	≤3	≤3	≤3
Drive method			Direct	Direct	Direct	Direct	Direct
Rotational speed		(r.p.m)	1500	1500	1500	1500	1500
Oil System capacity		L	3.5	3.5	10	10	10
Air outlet size		RP	³/₄	³/₄	¹	¹	¹
Dimensions	Length	mm	1175	1175	1450	1450	1450
	Width	mm	490	490	552	552	610
	Height	mm	755	755	890	890	890
Weight		kg	165	180	305	310	320
Electric starting			Inverter Drive	Inverter Drive	Inverter Drive	Inverter Drive	Inverter Drive
Electric motor power		KW	7.5	11	15	18.5	22
Electric motor Efficiency			IE4	IE4	IE4	IE4	IE4
Insulation class			F	F	F	F	F
Enclosure class			IP55	IP55	IP55	IP55	IP55
Service factor			1.2	1.2	1.2	1.2	1.2
Power supply		V/Ph	380~400/3	380~400/3	380~400/3	380~400/3	380~400/3
Frequency		HZ	100	100	100	100	100
Supply wire section		mm²	10	10	16	16	25

PA30~PA55

Model		Unit	PA30	PA37	PA45	PA55
Ambient temperature		℃	0-45	0-45	0-45	0-45
Relative humidity		%	0-90	0-90	0-90	0-90
Air Capacity	8bar	m³/min	5.68	6.9	8.37	9.14
	10bar	m³/min	4.72	5.74	7.1	9.03
	13bar	m³/min	3.71	4.77	5.92	7.11
Oil carryover		PPM	≤3	≤3	≤3	≤3
Drive method			Direct	Direct	Direct	Direct
Noise Level		dB(A)	76	76	79	79
Rotational speed		(r.p.m)	1500	1500	1500	1500
Oil System capacity		L	19	19	19	19
Air outlet size		RP	1¹/₂	1¹/₂	1¹/₂	2
Dimensions	Length	mm	1915	1915	1935	1950
	Width	mm	805	805	805	840
	Height	mm	1168	1168	1168	1168
Weight		kg	620	630	650	720
Electric starting			Inverter Drive	Inverter Drive	Inverter Drive	Inverter Drive
Electric motor power		KW	30	37	45	55
Insulation class			F	F	F	F
Enclosure class			IP55	IP55	IP55	IP55
Service factor			1.2	1.2	1.2	1.2
Electric motor Efficiency			IE4	IE4	IE4	IE4
Power supply		V/Ph	380~400/3	380~400/3	380~400/3	380~400/3
Frequency		HZ	100	100	100	100
Supply wire section		mm²	35	50	50	50
