Compressed air is key to the safe and reliable operation of critical applications on most commercial vehicles. However, hybrid and all-electric vehicles now require much higher levels of auxiliary systems compared to traditional diesel powertrains. There is also a new generation of vehicles using alternative fuels, such as hydrogen fuel cells, to reduce energy consumption and emissions while still meeting growing demand.NAILI AZH Series
AZH series which is the latest Generation of Rotary Vane Compressors NAILI developed for braking system in Electric buses and trucks in 2021;
Then in pasted few years later, NAILI is now the No.1 Supplier for fixed with Electrical vehicles, Locomotive, Mini van
To be compared with previous design or competitors,
-it has maller dimensions/Simple, lower speed and compact design for better solution in electric vehicles!
Vane compressor has higher efficiency than other compressors in Air out capacity!
Electric Truck Air Compressors offer many benefits to businesses that operate truck fleets. All air compressor units are compact and can be easily integrated into different parts of the vehicle chassis. They also use high-quality materials to keep weight to a minimum. This is ideal for transportation businesses, as every kilogram of weight saved gives the opportunity to transport more cargo.
The rotary blade technology produces low noise levels, with actual outputs of 69 dB (A) and below. The air supplied is also pulsation free, meaning minimal vibration is produced. These features make it an ideal partner for 24-hour urban applications such as early morning garbage collection.
Improvement of Anti-condensation valve embeded;
Only 1500rpm;
Compact design;
It can be installed any place where needs small space!
Much easier maintenance;
Lower cost for maintenance;
Has cyclone oil separation design, for avoid more oil out, to harm your compressed air system!

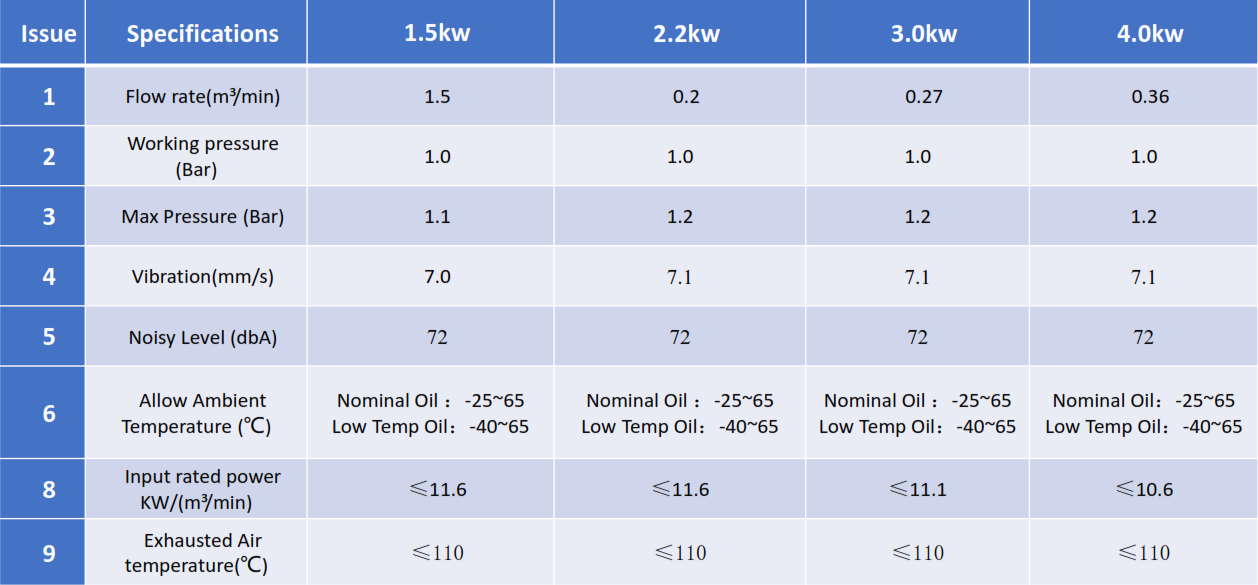

| Issue | Specifications | 1.5kw | 2.2kw | 3.0kw | 4.0kw |
| 1 | Flow rate(m/min) | 1.5 | 0.2 | 0.27 | 0.36 |
| 2 | Working pressure (Bar) | 1.0 | 1.0 | 1.0 | 1.0 |
| 3 | Max Pressure(Bar) | 1.1 | 1.2 | 1.2 | 1.2 |
| 4 | Vibration(mm/s) | 7.0 | 7.1 | 7.1 | 7.1 |
| 5 | Noisy Level (dbA) | 72 | 72 | 72 | 72 |
| 6 | Allow Ambient Temperature(C) | NominalOil:-25~65 Low Temp Oil:-40~65 | Nominal Oil:-25~65 Low Temp Oil:-40~65 | Nominal Oil:-25~65 Low Temp Oil:-40~65 | Nominal Oil:-25~65 Low Temp Oil:-40~65 |
| 8 | Input rated power KW/(m/min) | ≤11.6 | ≤11.6 | ≤11.1 | ≤10.6 |
| 9 | Exhausted Air temperature(C) | ≤110 | ≤110 | ≤110 | ≤110 |
